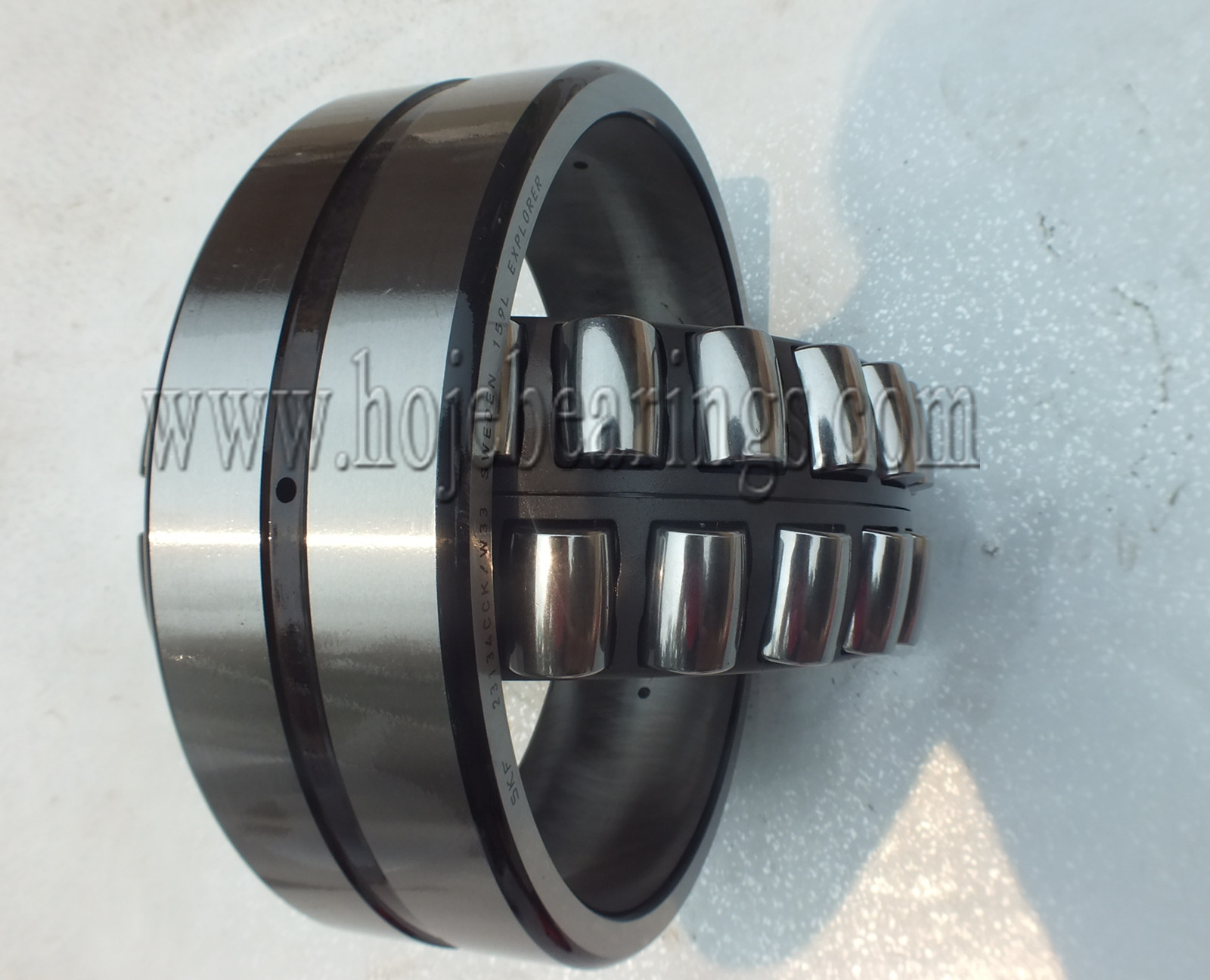

Original Strong Load Spherical Roller Bearing 240/630 241/630
Original Strong Load Spherical Roller Bearing 240/630 241/630
| Product | Spherical Roller Bearing 241/630 |
| Size | d | 630 mm |
| D | 1030 mm |
| B | 400 mm |
| Weight | 1334 kg |
Original Strong Load Spherical Roller Bearing 240/630 241/630
Packing:
| 1. Industrial packaging |
| 2. Original Box |
| 3. Original Box + Carton |
| 4. Original Box + Carton + Pallet |
| 5. As your require |
Original Strong Load Spherical Roller Bearing 240/630 241/630
Spherical roller bearings have two roller to mainly take radial
load,but also able to withstand the axial load in either
direction.High radial load capacity,especially sutiable for work
overload or vibration load,but can not afford the pure axial
load.This kind of bearing outer ring raceway is spherical
shape,aligning performance is good,can compensate concente error.
Original Strong Load Spherical Roller Bearing 240/630 241/630
HOJE Manufacture series:
CC Design Spherical Roller Bearings
CA Design Spherical Roller Bearings
MB Design Spherical Roller Bearings
E Design Spherical Roller Bearings
Original Strong Load Spherical Roller Bearing 240/630 241/630
Suffix Number:
K:tapered bore,taper 1:12
K30:tapered bore,taper 1:30
CC:Two window-type steel cages,flangeless inner ring and guide ring
centered on the inner ring.
CA:One-piece machined brass cage,double-pronged,retaining flanges
on the inner ring ang guide ring centred on the inner ring.
E:For bearings with a bore diameter d≤65mm,Two pressed window-type
steel cages,flangeless inner ring and guide ring centred on the
inner ring (fig).For bearings with a bore diameter d≥65mm,Two
presseed window-type stel cages,flangeless inner ring and guide
ring centred on the cages.
MB:Solid brass cage,guidance on thge inner ring.
Original Strong Load Spherical Roller Bearing 240/630 241/630
Manufacture Size:Inner dia 20mm-outer Dia 600m
Original Strong Load Spherical Roller Bearing 240/630 241/630
Main application:
Papermaking machinery,deceleration devices,railkway vehicle
axle,rolling mill gearbox bearing,rolling mill roller
crusher,vibrating screen,printing machinery,wood working
machinery,various type of industrial gear reducer.
Original Strong Load Spherical Roller Bearing 240/630 241/630
HOJE company advantage :
| 15 years of export experience |
| stable cooperation with 35 countries and regions |
| 20000 kinds of product model to provide you more choices |
| $1500000 fixed inventory to shorten delivery time |
| many years of OEM and ODM service experience |
| ISO 9001 and SGS certification |
Original Strong Load Spherical Roller Bearing 240/630 241/630
HOJE company Service:
1,High quality
Only offer high quality products, long time, low noisy, high
precision! Customer's approval is our ultimate goal!
2,Deliver On Time
Rich stock and strong capability of production, never fail customer
with delivery time!
3,After-Sale Service
Full responsibility for the after-sale cargo, always being
customer's reliable partener in China!
Original Strong Load Spherical Roller Bearing 240/630 241/630
We can also provid other spherical roller bearings :
| Spherical Roller Bearing | | | | |
| Model | Dimesion(mm) | weight |
| d | D | T | |
| 22206CAW33 | 30.000 | 62.000 | 20.000 | 0.270 |
| 22206CCW33 | 30.000 | 62.000 | 20.000 | 0.270 |
| 22206MBW33 | 30.000 | 62.000 | 20.000 | 0.270 |
| 22207CAW33 | 35.000 | 72.000 | 23.000 | 0.430 |
| 22207CCW33 | 35.000 | 72.000 | 23.000 | 0.430 |
| 22207MBW33 | 35.000 | 72.000 | 23.000 | 0.430 |
| 22208CAW33 | 40.000 | 80.000 | 23.000 | 0.510 |
| 22208CCW33 | 40.000 | 80.000 | 23.000 | 0.510 |
| 22208MBW33 | 40.000 | 80.000 | 23.000 | 0.510 |
| 22209CAW33 | 45.000 | 85.000 | 23.000 | 0.540 |
| 22209CCW33 | 45.000 | 85.000 | 23.000 | 0.540 |
| 22209MBW33 | 45.000 | 85.000 | 23.000 | 0.540 |
| 22210CAW33 | 50.000 | 90.000 | 23.000 | 0.600 |
| 22210CCW33 | 50.000 | 90.000 | 23.000 | 0.600 |
| 22210MBW33 | 50.000 | 90.000 | 23.000 | 0.600 |
| 22211CAW33 | 55.000 | 100.000 | 25.000 | 0.820 |
