UCP215 Pillow Block Bearing

    Buy cheap UCP215 Pillow Block Bearing from wholesalers

    Buy cheap UCP215 Pillow Block Bearing from wholesalers
    • Buy cheap UCP215 Pillow Block Bearing from wholesalers
    • Buy cheap UCP215 Pillow Block Bearing from wholesalers

    UCP215 Pillow Block Bearing

    Ask Lasest Price
    Brand Name : HOJE or OEM
    Model Number : UCP215
    Price : 7.75$
    Delivery Time : 7says
    Payment Terms : T/T, L/C,D/P,Western Union,Paypal,Money Gram,etc
    Supply Ability : 10000 pcs/month
    Certification : ISO 9001:2008
    • Product Details
    • Company Profile

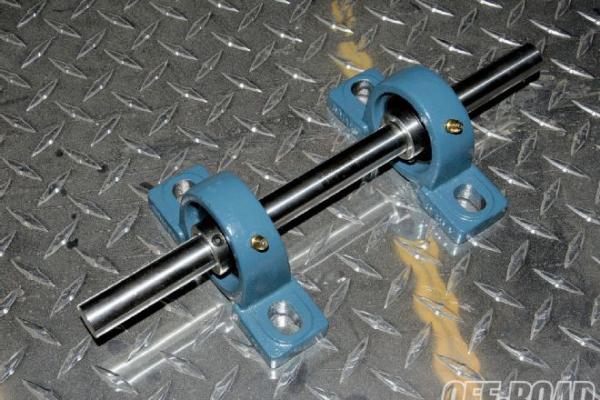

    UCP215 Pillow Block Bearing

    UCP215-47
    UCP215-47
    has a combination of a cast iron pillow block housing with an anti-rotation device with self-alignment and a set screw locking chrome steel insert bearing with a slinger seal design. This specific unit is a standard duty pillow block bearing with a wide inner ring and two set screws and a cast iron unit with the standard base to center height with a grease fitting.
    UCP200 Series Pillow Block Bearingis equipped with two specifically designed set screws that are positioned in the inner ring of the ball bearing to lock and attach to the shaft.
    Common usage forUCP200SeriesPillow Block Bearing include: Agriculture, Automotive, Construction, Pump, Manufacturing Equipment, Sporting and Consumer Goods, Conveyor and Fan Assemblies, Farm Machinery, HVAC, Feed Mill, Economical housed bearing solution and many other Industrial Equipmen

    AttributesValues
    Unitsinch
    Bearing TypeExtended inner race with set screws
    Dynamic Load Rating (Cr)15,163
    Static Load Rating (Cor)10,844
    Shaft Height (h)3.2520
    Housing Width (b)2.9130
    Mounting Hole Center-to-Center (e)8.5430
    Housing Length (a)10.8270
    Mounting Slot Length (S2)1.1810
    Mounting Slot Width (S1)0.9840
    Housing Base Thickness (g)1.1020
    Housing Height (w)6.3780
    Bearing Inner Race Width (Bi)3.0630
    Bearing Inner Race Width - Short Side (n)1.3110
    Bearing Inner Race Width - Extended Side (m)1.7520
    Mounting Bolt Size0.7500
    Bearing NumberUCP 215-47
    Housing NumberP 215
    Shaft Dia., Nominal (d)2.9375
    Shaft Size (ds)2 15/16
    Weight (g)7,302.83
    MaterialCast iron housing, chrome steel bearing
