UCP211 Pillow Block Bearing

    Buy cheap UCP211 Pillow Block Bearing from wholesalers

    Buy cheap UCP211 Pillow Block Bearing from wholesalers
    • Buy cheap UCP211 Pillow Block Bearing from wholesalers
    • Buy cheap UCP211 Pillow Block Bearing from wholesalers

    UCP211 Pillow Block Bearing

    Ask Lasest Price
    Brand Name : HOJE or OEM
    Model Number : UCP211
    Price : 3.5$
    Delivery Time : 7says
    Payment Terms : T/T, L/C,D/P,Western Union,Paypal,Money Gram,etc
    Supply Ability : 10000 pcs/month
    Certification : ISO 9001:2008
    • Product Details
    • Company Profile

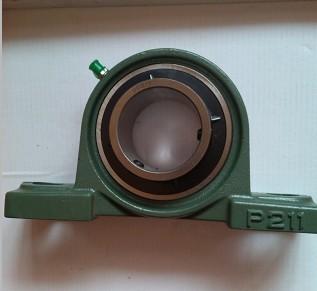

    UCP211 Pillow Block Bearing

    UCP211-32
    UCP211-32
    has a combination of a cast iron pillow block housing with an anti-rotation device with self-alignment and a set screw locking chrome steel insert bearing with a slinger seal design. This specific unit is a standard duty pillow block bearing with a wide inner ring and two set screws and a cast iron unit with the standard base to center height with a grease fitting.
    UCP200 Series Pillow Block Bearingis equipped with two specifically designed set screws that are positioned in the inner ring of the ball bearing to lock and attach to the shaft.
    Common usage forUCP200SeriesPillow Block Bearing include: Agriculture, Automotive, Construction, Pump, Manufacturing Equipment, Sporting and Consumer Goods, Conveyor and Fan Assemblies, Farm Machinery, HVAC, Feed Mill, Economical housed bearing solution and many other Industrial Equipment.

    AttributesValues
    Unitsinch
    Bearing TypeExtended inner race with set screws
    Dynamic Load Rating (Cr)9,742
    Static Load Rating (Cor)6,612
    Shaft Height (h)2.5000
    Housing Width (b)2.3620
    Mounting Hole Center-to-Center (e)6.7320
    Housing Length (a)8.6220
    Mounting Slot Length (S2)0.8660
    Mounting Slot Width (S1)0.7870
    Housing Base Thickness (g)0.7480
    Housing Height (w)4.9210
    Bearing Inner Race Width (Bi)2.1890
    Bearing Inner Race Width - Short Side (n)0.8740
    Bearing Inner Race Width - Extended Side (m)1.3150
    Mounting Bolt Size0.6250
    Bearing NumberUCP 211-32
    Housing NumberP 211
    Shaft Dia., Nominal (d)2.0000
    Shaft Size (ds)2
    Weight (g)3,719.45
    MaterialCast iron housing, chrome steel bearing
