5/8'' Pillow Block Bearings UCP202-10

Ask Lasest Price
Brand Name :	HOJE or OEM
Model Number :	UCP202-10
Price :	0.1$
Delivery Time :	7says
Payment Terms :	T/T, L/C,D/P,Western Union,Paypal,Money Gram,etc
Supply Ability :	10000 pcs/month
Certification :	ISO 9001:2008

Add to Cart

Product Details
Company Profile

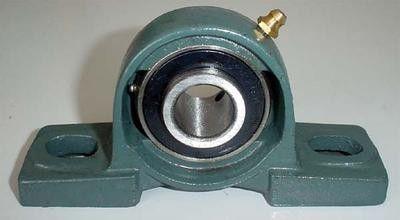

5/8'' Pillow Block Bearings UCP202-10

UCP202-10
UCP202-10has a combination of a cast iron pillow block housing with an anti-rotation device with self-alignment and a set screw locking chrome steel insert bearing with a slinger seal design. This specific unit is a standard duty pillow block bearing with a wide inner ring and two set screws and a cast iron unit with the standard base to center height with a grease fitting.
UCP200 Series Pillow Block Bearingis equipped with two specifically designed set screws that are positioned in the inner ring of the ball bearing to lock and attach to the shaft.
Common usage forUCP200SeriesPillow Block Bearing include: Agriculture, Automotive, Construction, Pump, Manufacturing Equipment, Sporting and Consumer Goods, Conveyor and Fan Assemblies, Farm Machinery, HVAC, Feed Mill, Economical housed bearing solution and many other Industrial Equipment.

Attributes	Values
Units	inch
Bearing Type	Extended inner race with set screws
Dynamic Load Rating (Cr)	2,887
Static Load Rating (Cor)	1,499
Shaft Height (h)	1.1890
Housing Width (b)	1.4960
Mounting Hole Center-to-Center (e)	3.7400
Housing Length (a)	5.0000
Mounting Slot Length (S2)	0.7480
Mounting Slot Width (S1)	0.5120
Housing Base Thickness (g)	0.4720
Housing Height (w)	2.3620
Bearing Inner Race Width (Bi)	1.2200
Bearing Inner Race Width - Short Side (n)	0.5000
Bearing Inner Race Width - Extended Side (m)	0.7200
Mounting Bolt Size	0.3750
Bearing Number	UCP 202-10
Housing Number	P 203
Shaft Dia., Nominal (d)	0.6250
Shaft Size (ds)	5/8
Weight (g)	635.03
Material	Cast iron housing, chrome steel bearing
