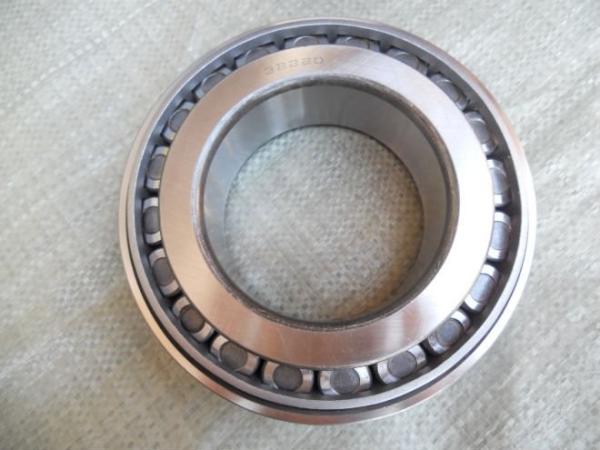

    32220 single row taper roller bearing with 100mm*180mm*49mm

    Ask Lasest Price
    Brand Name : HOJE or OEM
    Certification : ISO 9001:2008
    Model Number : 32220
    Price : 7.4$
    Delivery Time : 7-15 days
    Payment Terms : T/T, L/C,D/P,Western Union,Paypal,Money Gram,etc
    Supply Ability : 10000 pcs/month
    • Product Details
    • Company Profile

    32220 single row taper roller bearing with 100mm*180mm*49mm

    Taper Roller Bearing 32220

    32220 single row taper roller bearing with 100mm*180mm*49mm

    Taper Roller Bearing 32220 Specifications
    Designation32220
    Principle dimensions(d)100mm
    Principle dimensions(D)180mm
    Principle dimensions(T)49mm
    Basic load ratings(dyn.)331kN
    Basic load ratings(stat.)496kN
    Limiting speed(grease lubrication)1800r/min
    Limiting speed(oil lubrication)2600r/min
    Weight5.27kg


    Tapered roller bearings consisting of inner ring with roller and cage assembly can be mounted separately from the cup. The projection lines of all the tapered surfaces meet at a common point on the main axis of the bearing. The rollers are guided by the cone (inner ring) back-face rib.The design of tapered roller bearing can support a combined radial and axial load. The larger the half angles of these cones, the larger the axial force that the bearing can sustain. Internal clearance for this bearing type is established during mounting by the axial position of the cone relative to the cup.

    Quality 32220 single row taper roller bearing with 100mm*180mm*49mm for sale
