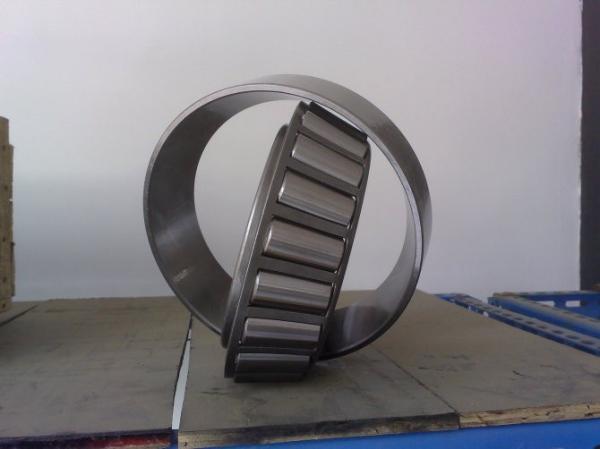

30209 Taper Roller Bearing with 458519mm

Product Categories

HOJE BEARING CO.,LIMITED

Contact Now

Ask Lasest Price
Brand Name :	HOJE or OEM
Model Number :	30209
Price :	1.08$
Delivery Time :	7says
Payment Terms :	T/T, L/C,D/P,Western Union,Paypal,Money Gram,etc
Supply Ability :	10000 pcs/month
Certification :	ISO 9001:2008

Add to Cart

1. This bearing is sold as an assembly only.

Attributes	Values
Units	mm
Bearing Type	single row assembly
Bore Dia (d)	45.0000
Outer Dia (D)	85.0000
Width (B)	20.7500
Outer Width (Bo)	16.0000
Inner Width (Bi)	19.0000
Radius (min) (rs)	1.500
Dynamic Load Rating (Cr)	67,000
Static Load Rating (Cor)	84,000
Max Speed (Grease)	4,500
Max Speed (Oil)	6,000
Max. Shaft Shoulder Dia. Inner (Li)	54.0
Min. Housing Shoulder Dia., Outer (Lo)	74.0
Radius (min) (rs1)	1.500
Weight (g)	476.00
Material	52100 chrome steel or equiavelent
